Square Woven Fabric

Square Woven Fabric, also called dipped T/C narrow fabric, woven by T/C yarns in both warp and weft direction. it's a kind of reinforcement materials in rubber industries.

Square woven fabric is Yusheng's Star and Innovative products. It has the characteristics of high strength, low elongation, dimensional stability, light weight, impact resistance, high temperature resistance, corrosion resistance, and good adhesion to rubber.


cellulose fiber textile
cellulose fiber textile
carbon fiber textile
bulk textiles
square woven fabric
industrial fabrics

Specification of Square Woven Fabric

NE16/1 * NE10/1 polyester /cotton yarn 65/35

SIZE

ROLL LENGTH 300M +/-10

RAW MATERIAL

WARP: NE16/1 COTTON /POLYESTER 35/65

WEFT: NE10/1 COTTON/POLYESTER 35/65

TREATMENT

RFL


VALUES FOR ACCEPTANCE



CHARACTERISTIC


UNIT

NORMAL

MIN

MAX

CONSTRUCTION-ENDS NUMBER

WARP


190

185

195

WEFT

Yarns/dm

95

90

100

Breaking loaD

Warp


600

540


Weft

N/5CM

370

340


Elongation at break

Warp


15

10

20

Weft

%

17

12

22

Weight


g/m2

180

170

190

Width


Mm

(*)TOLL+/-1

Thickness


Mm

0.48+/-0.05

Wave


Tipo

TELA 1/1

Shelf life


month

12

Note: Special spec. can be customized by the requirement/sample from customers.


NE30/1 * NE30/1 polyester /cotton yarn 65/35

SIZE

ROLL LENGTH 150M +/-10

RAW MATERIAL

WARP :NE30/1 COTTON /POLYESTER 35/65

WEFT: NE30/1 COTTON/POLYESTER 35/65

TREATMENT

RFL


VALUES FOR ACCEPTANCE



CHARACTERISTIC


UNIT

NORMAL

MIN

MAX

CONSTRUCTION-ENDS NUMBER

WARP

Yarns/dm

185

175

195

WEFT

80

75

85

Breaking loaD


Warp

N/5CM

270

240


weft

110

90


Elongation at break


Warp

%

10

5

15

weft

17

12

22

Weight


g/m2

80

75

85

Width


mm

(*)TOLL+/-1

Thickness


Mm

0.34+/-0.05

Wave


Tipo

TELA 1/1

Shelf life


mesi

6

Note: Special spec. can be customized by the requirement/sample from customers.

Application of Square Woven Fabric

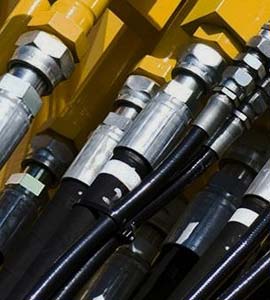

Yusheng's square woven fabrics acting as a reinforcement materials are widely used in Hydraulic Rubber Hose production.
application of square woven fabric
chemical fiber cloth
square woven fabric  1
square woven fabric  2
