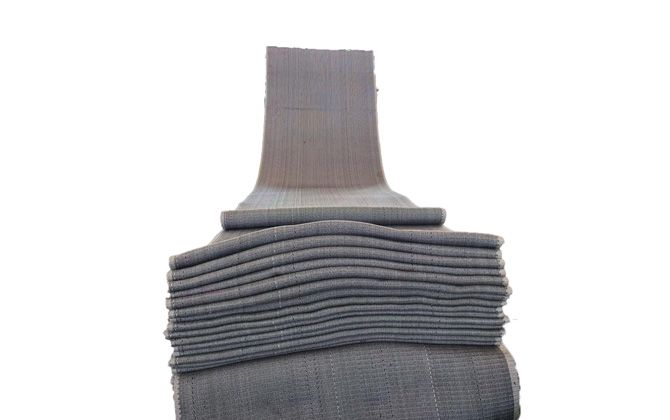

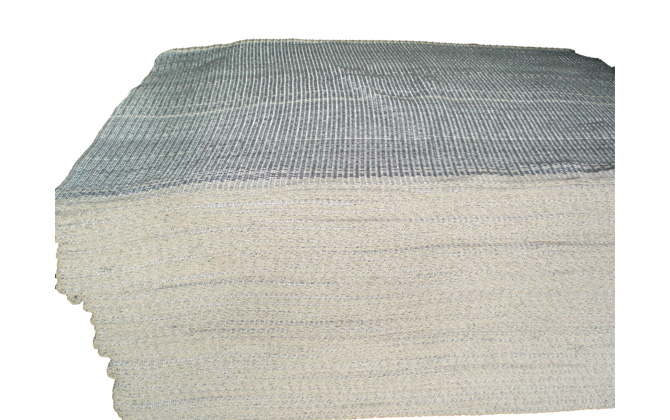

Solid Woven Fabric

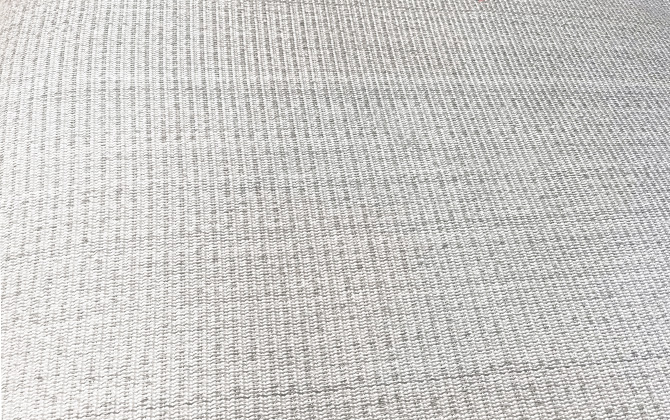

Solid woven fabric is made of polyester and nylon6 together with cotton fiber. It is a reinforcement of fire-retardant conveyor belts and has the following characteristics:

High tensile strength, small elongation
Heat resistance, fatigue resistance and corrosion resistance
Anti- deformation, stable dimension and impact resistance
Good adhesion

Specification: here we can mainly supply grey solid woven fabrics of M680, M800, M1000, M1250, M1400, M1600, M1800, M2000 and M2500, etc,

Specifications of Undipped Solid Woven Fabric

Type	Density end/10 ㎝ ≥		Break strength N/end ≥		Elongation Rate ≥%		Content of cotton ≥%		Woven layer ≥
Type	Warp	Weft	Warp	Weft	Warp	Weft	Warp	Weft	Woven layer ≥
M680	160	120	500	300	10	18	20	45	3
M800	192	120	500	300	10	18	20	45	3
M1000	276	160	500	300	10	18	15	45	4
M1250	240	160	740	330	10	18	10	45	4
M1400	264	160	740	330	10	18	10	45	4
M1600	324	160	740	350	10	18	10	35	4
M1800	264	160	1000	350	10	18	10	35	4
M2000	300	160	1000	420	10	18	--	--	4
M2500	324	160	1000	420	10	18	--	--	5

Note: All the above products can be produced according to customers' requirements.

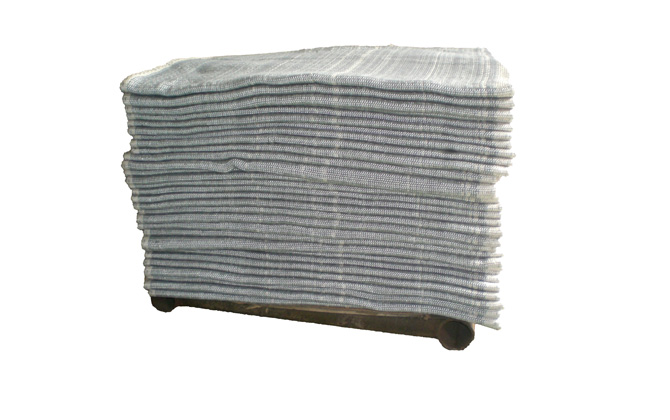

Packaging Types: Packed in rolls or spare, using standard packing materials and methods. One 20' FCL container can hold 20 tons.

Application of Solid Woven Fabric

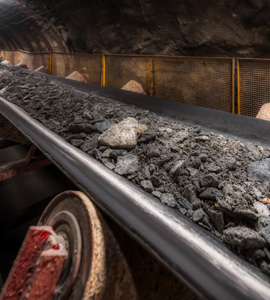

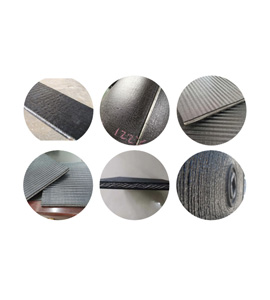

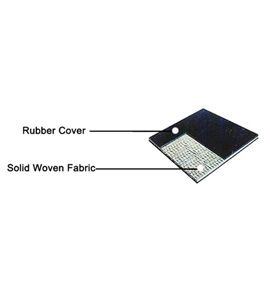

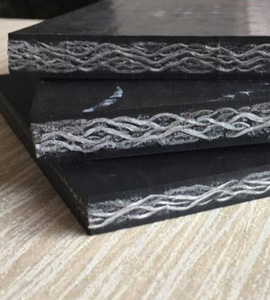

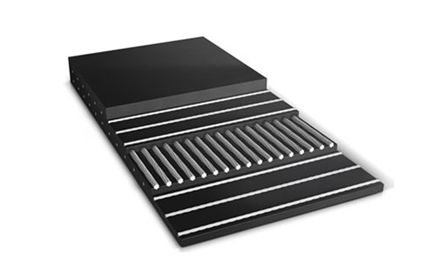

YUSHENG's Solid Woven Fabric is widely used in production of PVC solid woven conveyor belt and PVG solid woven conveyor belt, These conveyor belt are mainly used for underground mater conveying in the coal mine. Solid Woven Fabric provide unmatched dimensional stability, tear resistance, and reliability under stress.
